| Model | SPF 5000 ES |
| Battery Voltage | 48VDC |
| Battery Type | Lithium/Lead-acid |
| Inverter Output | |
| Rated Power | 5000VA/5000W |
| Parallel Capability | Yes, 6 units Maximum |
| AC Voltage Regulation (Battery Mode) | 230VAC ± 5% @ 50/60Hz |
| Surge Power | 10000VA |
| Efficiency (Peak) | 93% |
| Waveform | Pure Sine Wave |
| Transfer Time | 10ms typical, 20ms Max |
| Solar Charger | |
| Maximum PV Array Power | 6000W |
| MPPT Range @ Operating Voltage | 120VDC–430VDC |
| Number of Independent MPP Tracker Strings Per MPP Tracker | 1/1 |
| Maximum PV Array Open Circuit Voltage | 450VDC |
| Maximum Solar Charge Current | 100A |
| AC Charger | |
| Charge Current | 80A |
| AC Input Voltage | 230VAC |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers); 90-280 VC (For Home Appliances) |
| Frequency Range | 50Hz/60Hz (Auto sensing) |
| Physical | |
| Protection Degree | IP20 |
| Dimension (W/H/D) | 330/485/135mm |
| Net Weight | 12Kg |
| Operating Environment | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Altitude | <2000m |
| Operating Temperature | 0°C - 55°C |
| Storage Temperature | -15°C - 60°C |

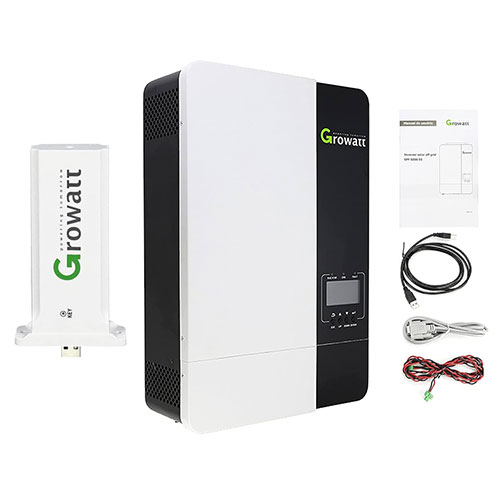

Growatt 5KW MPPT SPF Solar Hybrid Inverter SPF 5000 ES

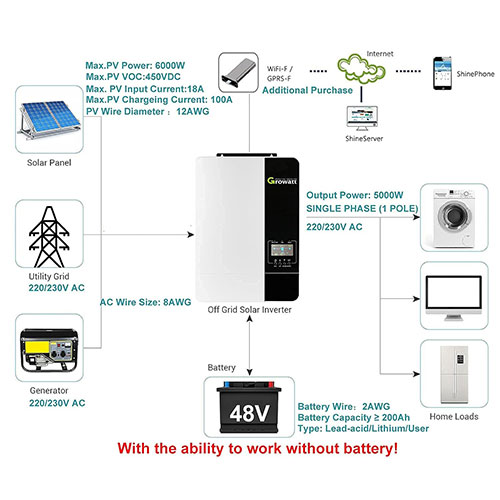

Growatt SPF 5000 ES is a Hybrid multifunctional Off grid solar inverter with a MPPT solar charge controller, high frequency pure sine wave inverter and a UPS function module. It can be used for off grid backup power and self-consumption applications with or without batteries. Other devices such as PV modules, generator or utility grid are required for complete running. Consult with your system integrator for other system architectures. The WiFi / GPRS module allows monitoring of the PV system from mobile or website.
Key Features
The latest price of Original Growatt 5KW MPPT SPF Solar Hybrid Inverter SPF 5000 ES in Bangladesh is 93,990৳. You can buy the Original Growatt 5KW MPPT SPF Solar Hybrid Inverter SPF 5000
